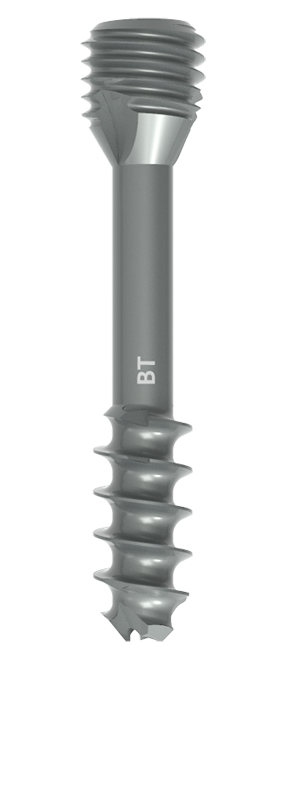

CSS V Double head Compression Cannulated Screw

Indications:
Suitable for fracture and fusion of metaphyseal fractures, intra-articular fractures or small fracture fragments of the limbs
Features:
1. The nail tail plum-shaped design is convenient for torque transmission
2. The pitch difference design produces pressure between the fracture fragments during screwing in.
3. The countersink design reduces the irritation of soft tissues and joints.
4. Deep thread, increase the holding force of cancellous bone
5. Self-tapping design, easy to operate and save operation time
6. Hollow design, guide needle guides the direction of the screw

Always on time

Acceptable price

Excellent quality

Follow Us

CSS V Double head Compression Cannulated Screw

Features

Download Center

Product Detail

HB2.4 Cannulated Screw II

P/NSpecification/mmScrew Length/mm
19001010L=10L0=4
19001011L=11L0=4
19001012L=12L0=4
19001013L=13L0=4
19001014L=14L0=4
19001015L=15L0=4
19001016L=16L0=4
19001017L=17L0=4
19001018L=18L0=4
19001019L=19L0=4
19001020L=20L0=4
19001021L=21L0=4
19001022L=22L0=4
19001023L=23L0=4
19001024L=24L0=5
19001025L=25L0=5
19001026L=26L0=5
19001027L=27L0=6
19001028L=28L0=6
19001029L=29L0=6
19001030L=30L0=7
19001032L=32L0=7
19001034L=34L0=8
19001036L=36L0=9
19001038L=38L0=9
19001040L=40L0=10
19002016L=16L0=5
19002017L=17L0=6
19002018L=18L0=6
19002019L=19L0=7
19002020L=20L0=7
19002021L=21L0=8
19002022L=22L0=8
19002023L=23L0=8
19002024L=24L0=8
19002025L=25L0=8
19002026L=26L0=10
19002027L=27L0=10
19002028L=28L0=10
19002029L=29L0=10
19002030L=30L0=12
19002032L=32L0=12
19002034L=34L0=14
19002036L=36L0=14
19002038L=38L0=16
19002040L=40L0=16
